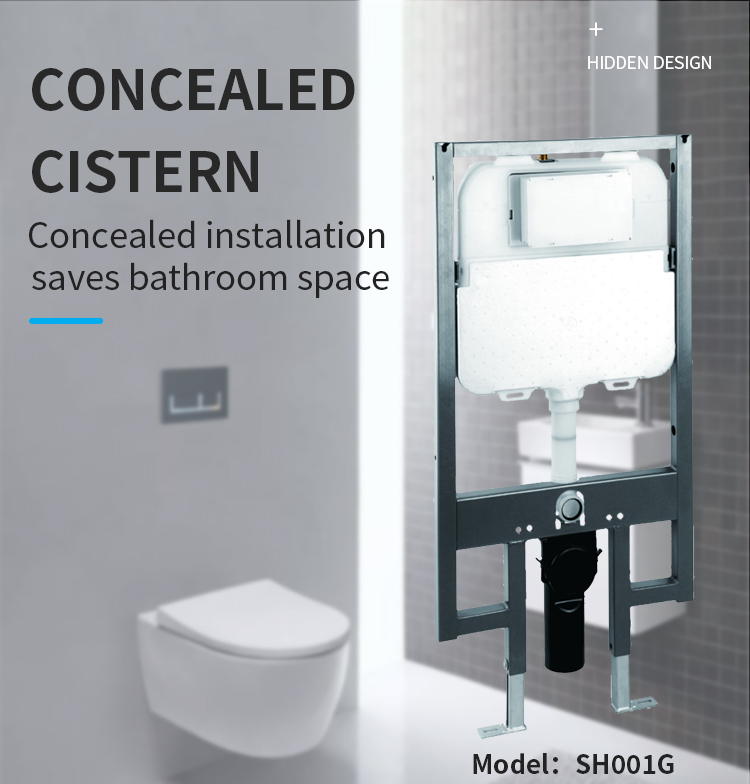

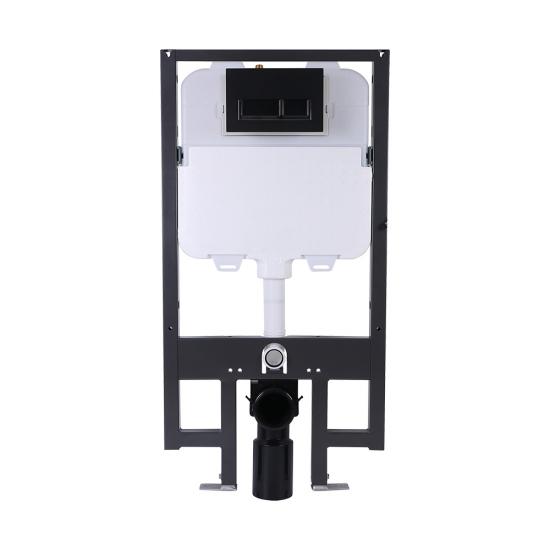

Sunten SH001G toilet tank inwall concealed cistern for wall-hung WC

Place of Origin:

Delivery Date:

Functions That Can Be Satisfied

National standard GB26730-2011, Australia AS1172.2-2014, has passed the Australian Watermark certification

Overflow Capacity

According to GB26730-2011, supporting blow molding water tank test, feed water into the water tank at a flow rate of 20L/min±0.2L/min (0.5MP), and the overflow water level SL-OL distance is 9-10mm (standard requirement ≤20mm)

Flush Volume

Flush setting can meet 6/3L, 4.5/3L, 4/2L; Flush stability ±0.2L

Tested according to the national standard: 2.08L/S

Operating Power

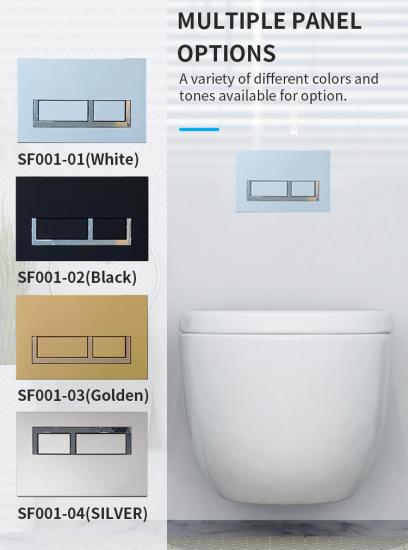

When the highest working water level is 255mm, the pressing force on the buttons on the supporting panel is 1.5-1.6 Kgf

Frame Strength

Can withstand the deformation under 400kgf weight is OK

Drop Test

After the drop test according to the packaging requirements, the product is not damaged

Tightness

Test OK under 3 water levels required by the national standard

Slow Speed Life Test

One full row, three half row records once, 100,000 times of cycle test OK (the national standard requires 50,000 times)

Pressure Resistance

Keep 5min OK under static pressure of 2.0MPa

Hidden Water Tank Impact Resistance

1. Rigidly fix the hidden water tank, and apply a force of 100kgf to the water outlet socket;

2. Use a 2kg weight to freely fall from a height of 2.6m and vertically impact the water outlet socket for more than 3 times;
